ฉนวนดูดซับเสียง ป้องกันเสียง ArmaSound RD

ฉนวนดูดซับเสียง ป้องกันเสียง ArmaSound RD

คุณสมบัติฉนวน ArmaSound

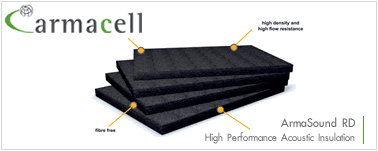

ArmaSound RD เป็นแผ่นฉนวนยางดูดซับเสียง ออกแบบมาเพื่อใช้ในงานลดเสียง กับการใช้งานประเภทต่างๆ ด้วยประสิทธิภาพในการดูดซับเสียงที่เหนือกว่าในการกั้นเสียง (transmission loss) และยังช่วยลดเสียงที่เกิดจากการสั่นสะเทือน เมื่อมีการวางท่อ ติดกับโครงสร้าง หรืออุปกรณ์ที่มีการสั่นสะเทือน (de-coupling or isolation properties) ArmaSound RD ผลงานการวิจัยกว่า 4 ปี ของอาร์มาเซล

ประสิทธิภาพในการดูดซับเสียงของฉนวนยาง ArmaSound RD มีคุณภาพแตกต่างกันไป ขึ้นกับ ความหนาแน่น ความหนา ของแผ่นยาง โดยการคัดเลือกชนิดของฉนวนยาง ให้เหมาะกับสภาพแวดล้อมของเสียงที่ต้องการควบคุม ArmaSound RD สามารถผลิตตาความต้องการในการดูดซับเสียงในปัญหาที่เกิดขึ้นในแต่ละพื้นที่ได้ หรือแต่ละช่วงคลื่นความถี่ได้





















การดูดซับเสียง (Sound Absorption)
ฉนวนยางโครงสร้างเซลล์เปิด ที่มีการเรียงตัวของเซลล์เหมาะสมต่อการดูดซับเสียง ทำให้สามารถดูดซับเสียงได้ในช่วงคลื่นความถี่ที่กว้าง โดยเฉพาะในช่วงคลื่นความถี่ต่ำ
ด้วยความโดดเด่นเฉพาะของ ARMASOUND ทำให้ ดูดซับเสียงรบกวน ที่น่ารำคาญได้
การทะลุทะลวงของเสียง (Sound Transmission Loss)
ด้วยความหนาแน่นที่สูงของ ArmaSound ทำให้ดูดซับพลังงานเสียงได้อย่างดี และมีค่า Sound Transmission loss ต่ำ
สามารถนำมาใช้ในงานลดแรงสั่นสะเทือนได้
งานลดเสียงสั่นสะเทือน และห้องเก็บเสียง
ด้วยคุณสมบัติความยืดหยุ่น (Visco-Elastic) จึงทำให้ลดเสียง Resonance ได้
ลดเสียงที่มาจาก Structure borne เมื่อใช้เป็นแผ่นซับเสียง


Acoustic Performance for ArmaSound RD 240

เปรียบเทียบ ประสิทธิภาพการดูดซับเสียงของ ArmaSound ที่ความหนาต่างๆ








































Application Area
HVAC - Fan-coil units, duct linings, cabinet linings and chiller systems
General Mechanical / Industrial - Enclosure and cabinet linings, reverberation control
Heavy Automotive - Engine component lining and under bonnet insulation
Gas Oil Facilities - Engine room and accomodation areas, pipeline insulation
White Goods - Internal side panels and air intake linings

What is ArmaSound

ArmaSound is a versatile acoustic absorber designed for use in a variety of different acoustic applications. A high performance sound absorber which also offers additional barrier (transmission loss) performance and both vibration damping and de-coupling (isolation) properties.

Delivering optimal performance at lower thicknesses than traditional materials, ArmaSound RD is a uniquely advanced open cell acoustic insulation material. With a peak absorption frequency determined by the insulation thickness and the material density ArmaSound RD can be engineered to target specific problem frequencies.

ArmaSound RD provides a dust and fibre free solution that is suitable for use in a range of demanding environments.

ArmaSound RD 240

Norminal Density : 240 kg/m3
ความหนา: 6, 10, 15, 20, 25, 50mm.
ขนาด : 1000x1000 mm.

ArmaSound Super Silience

Norminal Density : 140 kg/m3
ความหนา: 6, 10, 15, 20, 25, 50mm.
ขนาด : 1000x1000 mm.
